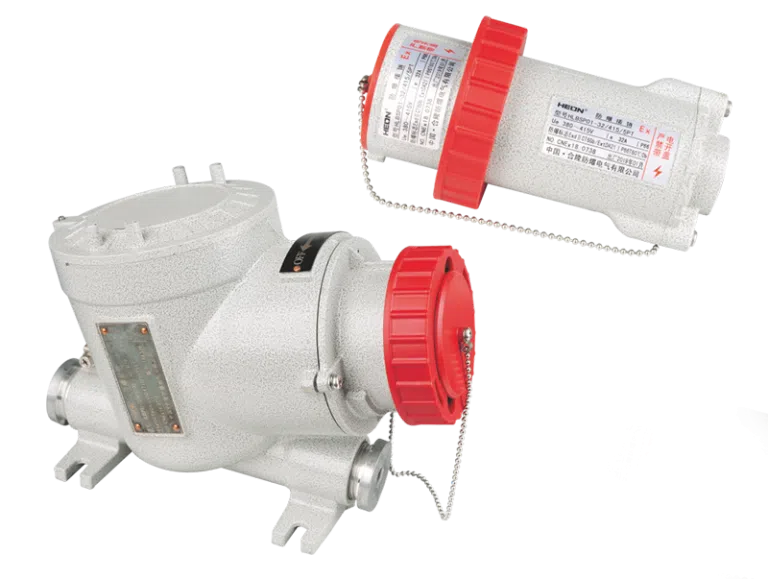

BS01-Series Explosion-proof Plug and Sockets
The BS01-Series explosion-proof plug and sockets are built for safe and reliable power connections in hazardous environments. Designed with flameproof construction, they prevent ignition of surrounding explosive gases or dust. These connectors ensure secure operation, easy installation, and long-lasting durability. Suitable for use in industrial zones requiring high safety standards.
Key Features:
- Explosion protection - IECEx (IEC), ATEX (CENELEC, EN), China Ex(GB)
- Application in hazardous area - Zone 1 and Zone 2, Zone 21 and Zone 22
- Flame-proof type enclosure, four types of enclosure
- Eight current classes: 10A, 16A, 25A, 32A, 50A, 63A, 100A, 125A
- Four pole options: 2P, 3P, 4P, 5P
- Reliable interlocking: plug removal only after switch is off; power on only after plug is inserted
- Elastic shutter spring sleeve ensures reliable contact, low resistance, low-temperature rise
- Self-cleaning design, low insertion/extraction force
- Includes timer with voltage-specific color coding to avoid mistaken insertion
BS01-Series Explosion-proof Plug and Sockets
The BS01-Series explosion-proof plug and sockets are built for safe and reliable power connections in hazardous environments. Designed with flameproof construction, they prevent ignition of surrounding explosive gases or dust. These connectors ensure secure operation, easy installation, and long-lasting durability. Suitable for use in industrial zones requiring high safety standards.
Features
- Explosion protection - IECEx (IEC), ATEX (CENELEC, EN), China Ex(GB)
- Application in hazardous area - Zone 1 and Zone 2, Zone 21 and Zone 22
- Flame-proof type enclosure, four types of enclosure
- Eight current classes: 10A, 16A, 25A, 32A, 50A, 63A, 100A, 125A
- Four pole options: 2P, 3P, 4P, 5P
- Reliable interlocking: plug removal only after switch is off; power on only after plug is inserted
- Elastic shutter spring sleeve ensures reliable contact, low resistance, low-temperature rise
